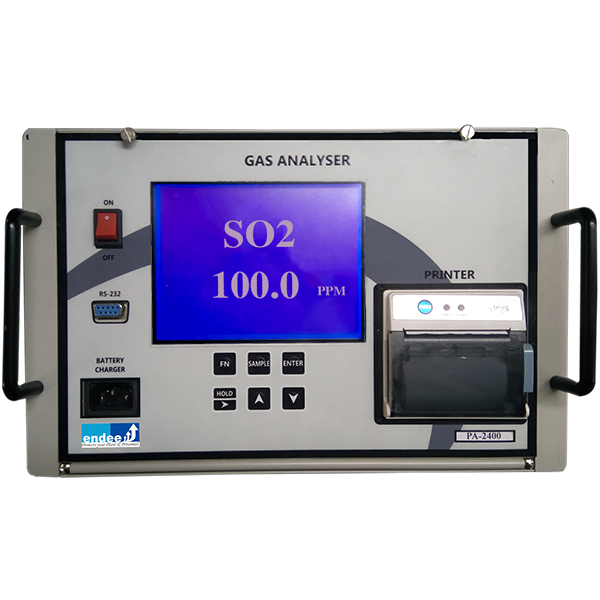

Multi Stack Gas Analyzer PA 2400


Multi Stack Gas Analyzer PA 2400

  • Portable, compact and rugged.
  • Complete Automatic Operation.
  • 16 Character, 2 line LCD displays messages and values through the operation of the anlayser.
  • Self check facility and a special software ensures accurate i analysis of data.
  • Standard Fuels with their parameters are preprogrammed , Others on request.
  • Battery operating period of 4 hours.
  • Inbuilt Buzzer announces various stages of operation.
  • A mere Six key to operate the complete instrument.
  • Visual alarms for Low Bat, No Flow and Sensor Fault.
  • Automatic sampling & Analysis for specified periods at preset intervals-completely unattended

Sensor Technologies Analyser is built up using sensors technology to suit specific application. Batteries Long life rechargeable batteries. Diffusion or Suction with Time tested, sturdy, high suction in-built pump supervisory circuit continuously monitors the pump against failure. Disposable Cartridge Line Filter & Moisture Separator Low porosity, disposable cartridge line filter & moisture separator suitably conditions the sample.

Calibration A built-in procedure allows easy and automatic span sensor calibration using stand; 3rd gas cylinder. Periodic zero calibration is automatic on demand. Electronic Flow Meter An automatic built-in system measures a flow of sampling gas to obtain a constant sampling volume. Multi Fuel Selection The fuel efficiency analyser can be programmed for selection upto 10 fuels for calculating combustion values.

Gas Probes & Sampling System Flue gas sampling probes with different lengths, shapes i and max, operating temperatures Upto 1600 C are available to match various requirements of different applications. A sintered pre-filter is suggested for severe and having dust loded applications. Heated Sampling Hose A heated sampling Hose is available for high temperature applications. A heated hose allows flue gas sampling without condensation. Continuous Monitoring The industrial design and the advanced technology applied to the unit, allows it to perform long term gas analysis

PROBES – APPLICATION SPECIFIC AVAILABLE Ambient CO Probe An optional probe to monitor ambient CO concentration to keep the operator in a safe environment. Gas Sniffer Probe To detect and locate the precise position of a gas leak in a pipe network or equipment. Smoke Index Smoke Index measurement can be obtained using a specia 1 heated probe, supplied on request, and through a dedicated internal procedure that computes the required volume of gas sample flowing into the specific filter. The results can be obtained by comparison with the Smoke Index Table.

Gas Velocity An internal procedure allows gas velocity measurements using the differential pressure inlet combined with a pitot tube. Report of Calibration Each instrument is factory calibrated and certified against Endee’s Standard Gasses and shipped with a Report of Calibration stating the nominal and actual values and the deviation error. Quality System Research, development, production, inspection and certification activities are defined by methods and procedures of the Endee’s System inspected for compliance and certified ISO 9001.


DisplayHigh Quality Alpha-numeric LCD. (16 character, 2 lines).
SamplingThrough inbuilt Sampling Pump.
Automatic CalibrationAutomatic at instrument start up with fresh air sample
1) Fresh air for oxygen 2) Span gases for others.
Response Time30 Seconds at 95% variation
Power Supply110V or 220V & AC Ni-cad battery pack with integral charger.
Working Temperature-5Deg.Cto 55Deg.C
Storage Temperature-20 to 50째C
Probe LengthSS 600 mm length standard (900 & 1200 mm optional)
Probe Diameter8mm (12mm optional)
Connection Hose(Probe Unit) 2.0 meters, special lengths on demand.
Battery Life6 Hours continuous operation.
Data Memory500 readings for each gases.
PrinterImpact type 24 columns.
Printing Speed0.75 lines/ seconds.
AlarmsVisual and audible, 4 Alarms
Digital InterfaceRS 232
CaseRigid Aluminum
External Dimensions280 x210 x185 mm
Weight (Gross)5.2 kg-(approximately)
Line FilterReplaceable 5 microns.
AccessoriesWater Trap, Battery Charger 220V/50HZ, Carrying Case.

The above Parameter and Ranges are only indicative. Endee will build up and supply the analyser with Parameters, range and features to any Practical Configuration.

Note : Specifications and Features will vary with application. The above are established and validated during design, but are not to be construed as test criteria for every product. Due to endee’s commitment to research, design and product improvement, specifications are subject to change without notice
